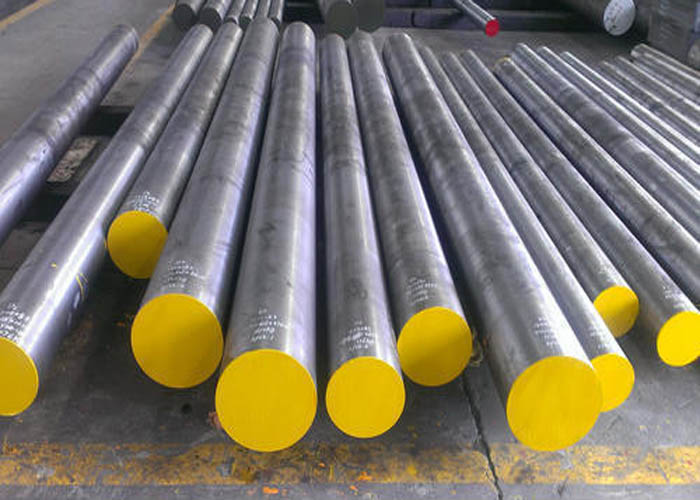

Plastic Mould Steel P20 1.2311 Alloy Steel Round Bar
Supply Range of P20 Mould Steel
Round Bar: diameter 20mm – 1000mm
Steel Plate: thickness 16-120mm x width 205-2200mm
Steel Block: thickness 130-650mm x width 205-810mm
P20 steel chemical composition
| Standard | Grade | C | Si | Mn | P | S | Cr | Mo |
| ASTM A681 | P20 | 0.28～0.40 | 0.2～0.8 | 0.60～1.0 | ≤0.030 | ≤0.030 | 1.4～2.0 | 0.3～0.55 |
| GB/T 9943 | 3Cr2Mo | 0.28～0.40 | 0.2～0.8 | 0.60～1.0 | ≤0.030 | ≤0.030 | 1.4～2.0 | 0.3～0.55 |
| DIN ISO4957 | 1.2311 | 0.35～0.45 | 0.2～0.4 | 1.3～1.6 | ≤0.030 | ≤0.030 | 1.8～2.1 | 0.15～0.25 |
Equivalent Steel Grades
| Country | USA | German | GB/T | JIS |
| Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 | |
| Grades | P20 | 1.2311 | 3Cr2Mo | PDS-3 |
Mechanical Properties
| Properties | Metric |
| Hardness, Brinell (Typical) | 300 |
| Hardness, Rockwell C (Typical) | 30 |
| Tensile Strength, Ultimate | 965-1030 MPa |
| Tensile Strength, Yield | 827-862 MPa |
| Elongation At Break (In 50 Mm (2″)) | 20.00% |
| Compressive Strength | 862 MPa |
| Charpy Impact (V-Notch) | 27.1-33.9 J |
| Poisson’s Ratio | 0.27-0.30 |
| Elastic Modulus | 190-210 GPa |
Thermal Properties
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Thermal Expansion | 12.8 X 10-6/ºC | 20-425 | – |
Forging of P20 Steel Plate Mold Steel
AISI P20 steel plate and round bars materials are forged at 1093°C (2000°F) down to 899°C (1650°F). Forging below 871°C (1600°F) is not recommended for these steels P20 material.
Heat Treatment
● Quenching
Pressurized gas, or interrupted oil to 150-125ºF (66-51ºC).
For oil, quench until black, at about 900°F (482°C), then cool in still air to 150-125°F (66-51°C).
● Tempering
P20 tool steels are tempered at 482-593°C (900 to 1100°F) for a Rockwell C hardness of 37 to 28.
● Annealing
Annealing for AISI P20 tool steels takes place at 760-788°C (1400 to 1450°F) and then the steels are cooled slowly in the furnace at a temperature less than 4°C (40°F) per hour.
Applications of P20 steel plate and bar
Plastic moulds, die holder, backers, rames for plastic pressure dies, hydro forming mold tools. bolsters, die holders. Also suitable for other applications such as rails, shafts and wear strips.
More grades we can supply.
D2 | 1.2379 | SKD11
H13 | 1.2344 | SKD61
D3 | 1.2080 | SKD1
O1 | 1.2510 | SKS3
L6 | 1.2714 | SKT4
JIS DC53
O2 | 1.2842
D6 | 1.2436 | SKD2
H11 | 1.2343 | SKD6
H10 | 1.2365 | SKD7
H12 | 1.2605 | SKD62
S7 | 1.2355
M2 | 1.3343 | SKH51
M35 | 1.3243 | SKH55
M42 | 1.3247 | SKH59
P20+Ni | 1.2738
420 | 1.2083
P20 | 1.2311
P20+S | 1.2312
S136 | S136H
718 | 718H
4140 | 42CrMo4| SCM440 | EN19
4340 | EN24
8620 | 1.6523 | SNCM220
34CrNiMo6 | 1.6582
30CrNiMo8 | 1.6580
